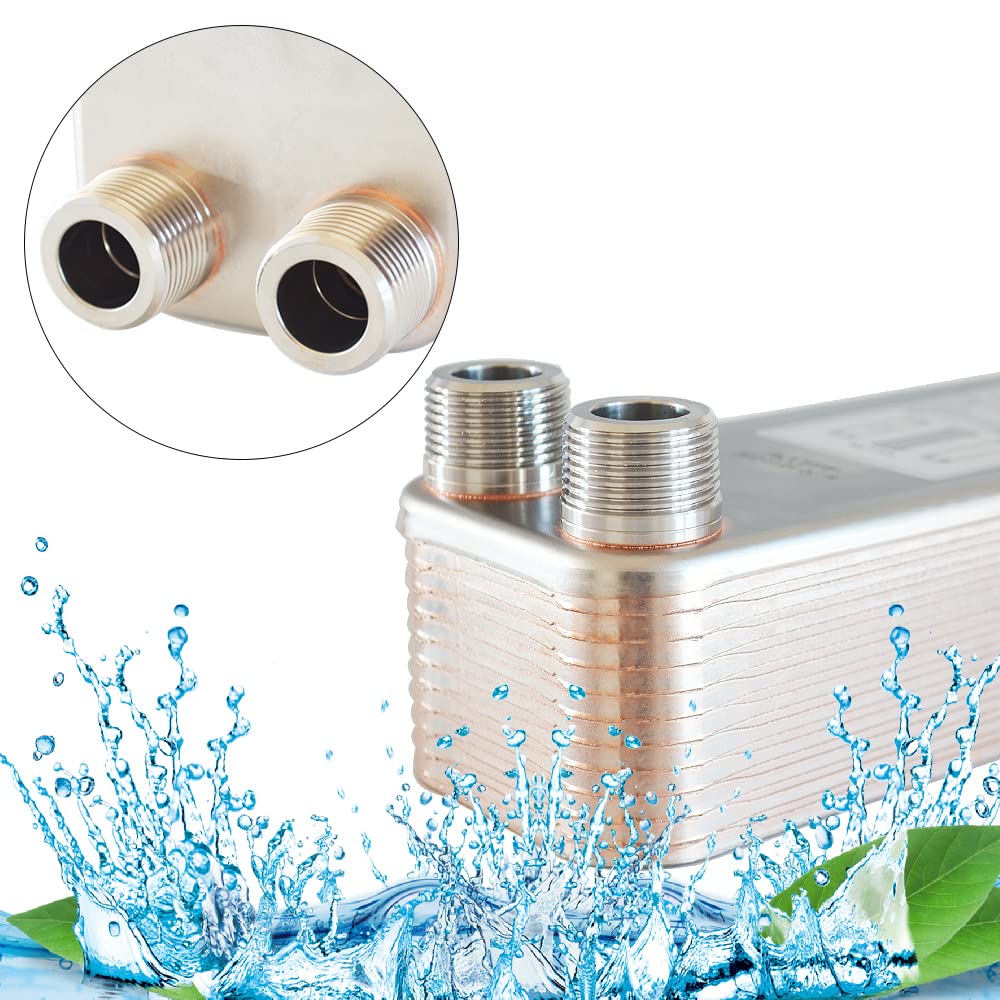

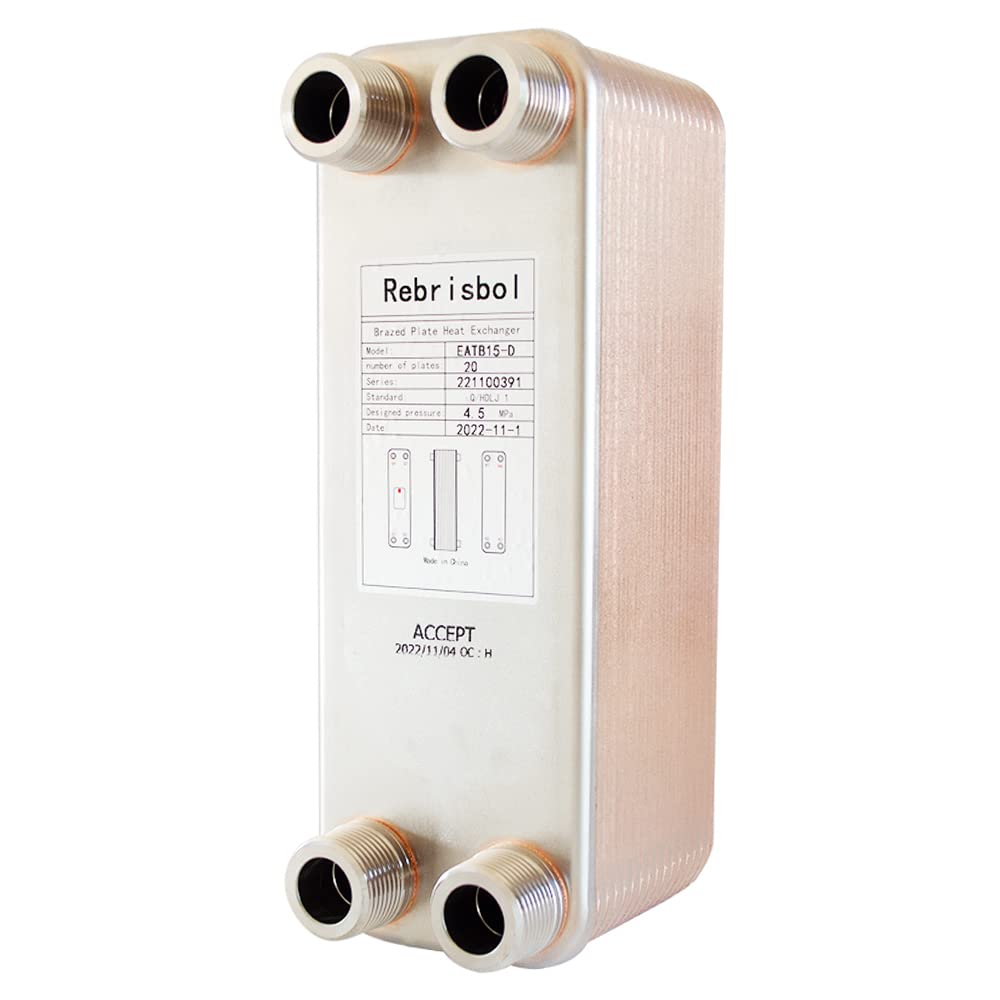

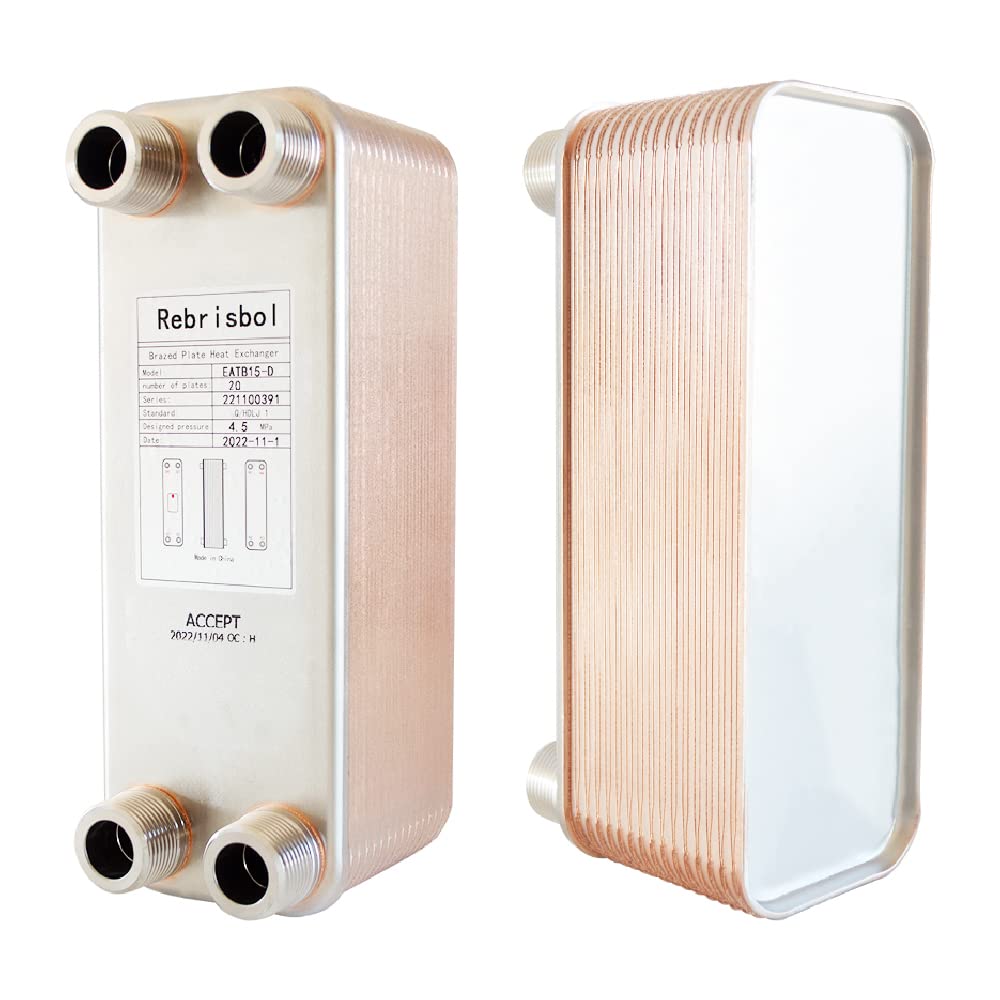

High Efficiency 3"x8" 20 Plate Brazed Heat Exchanger - Copper/SS316L Stainless Steel Water to Water Heat Transfer - 3/4" NPT Ports - Ideal for Hydronic Heating, Solar Thermal & HVAC Systems
Free shipping on all orders over $50
7-15 days international
24 people viewing this product right now!
30-day free returns
Secure checkout
65211490
Description
Compact and lightweight design & quick and easy intallation 【Product Parameter】- Model: EATB15-D-20; Material: 316L stainless steel sheets + 99.9% copper; Plate: 3" x 8"-20 plates; Port: 3/4" MNPT; Designed Pressure: 4.5Mpa; Min Working Temp: -180℃; Max Working Temp: 200℃; Heat transfer area per plate: 0.014㎡; Volume per channel: 0.022L; Monolithic channel cross section area: 0.000148㎡ 【Premium Quality】- Our brazed plate heat exchangers is made of high quality 316L stainless steel and the plates are vacuum high purity copper brazed together to form two separate flow channals. The fluids can pass in co-current or counter - current directions. High resistance to pressure and temperature fluctuations & corrosion resistance. 【Superior Design】- Special herring bone corrugation pattern of the plates not only creates a strong turbulent flow and move the media in opposite directions to get superior heat transfer rates and efficiency, but also prevents scaling from forming inside the unit and impress heat transfer rates. 【Wide Application】- This brazed plate heat exchangers are ideal for a variety of installations, including: Hydronic heating, domestic hot water heating, radiant heating, snow & ice melting, chilled water cooling, beer & wort chilling,hydraulic oil cooling, outdoor wood furnaces/stoves/boilers and other water to water and liquid to liquid heat transfer applications. › See more product details
Features
Compact and lightweight design & quick and easy intallation

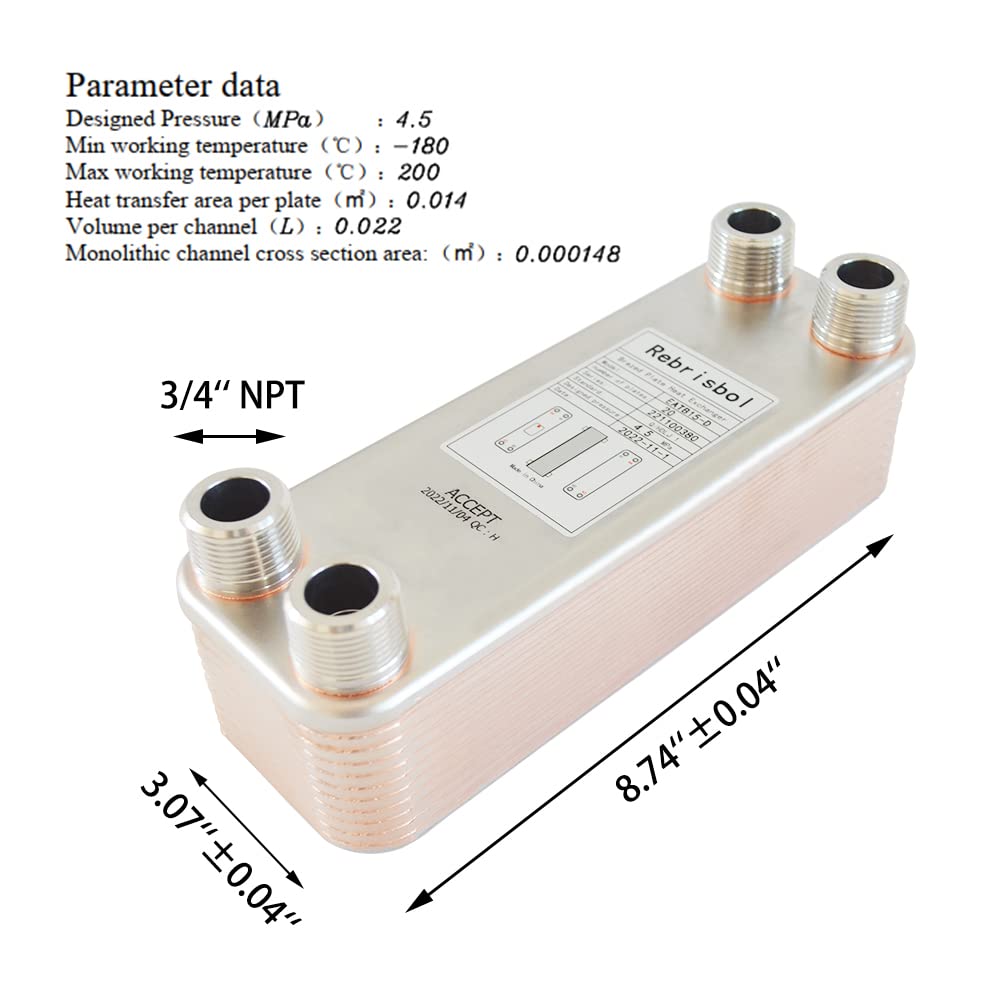

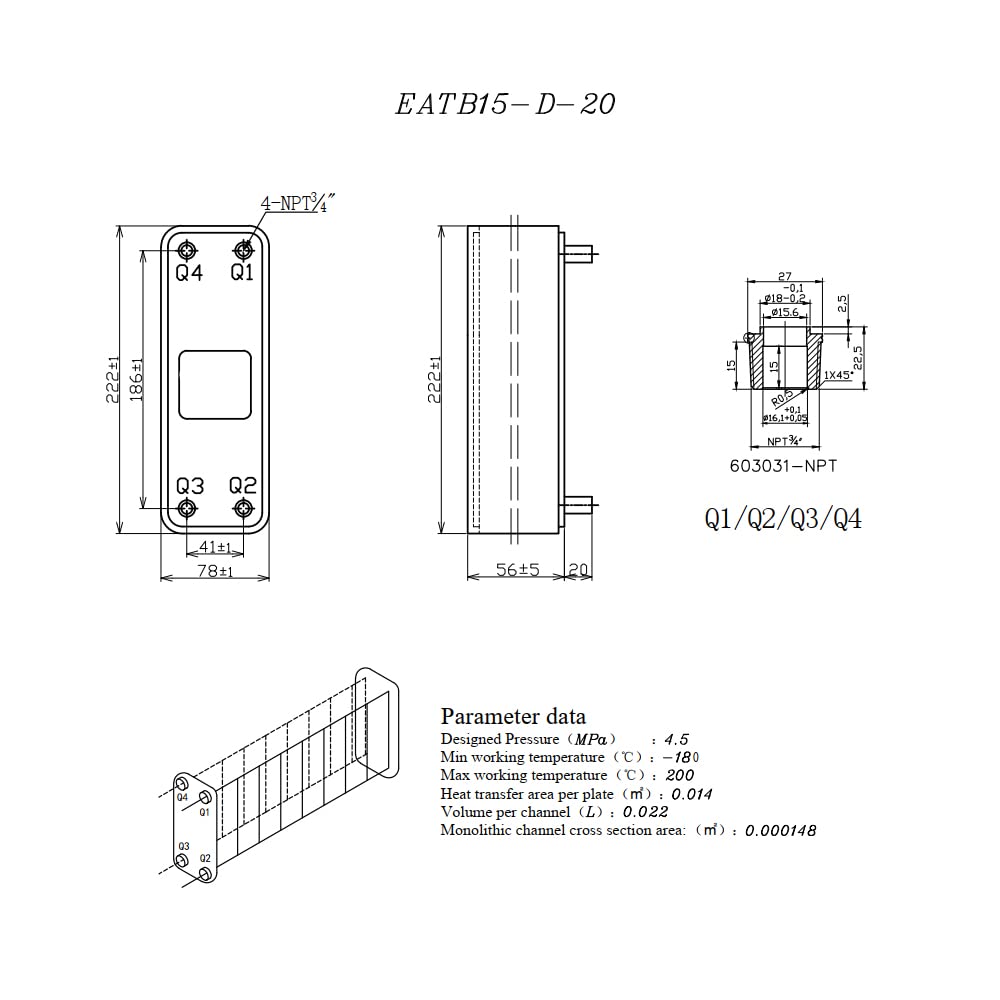

【Product Parameter】- Model EATB15-D-20; Material 316L stainless steel sheets + 99.9% copper; Plate 3" x 8"-20 plates; Port 3/4" MNPT; Designed Pressure 4.5Mpa; Min Working Temp -180℃; Max Working Temp 200℃; Heat transfer area per plate 0.014㎡; Volume per channel 0.022L; Monolithic channel cross section area 0.000148㎡

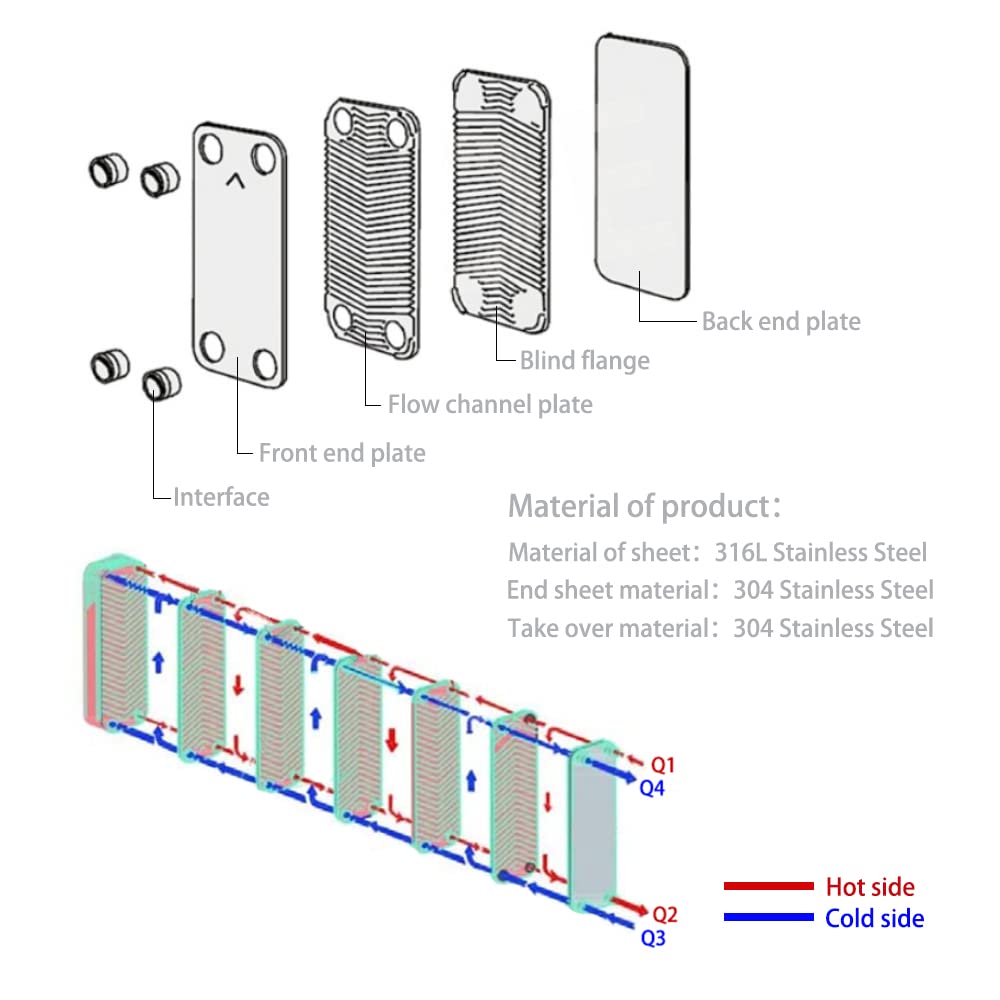

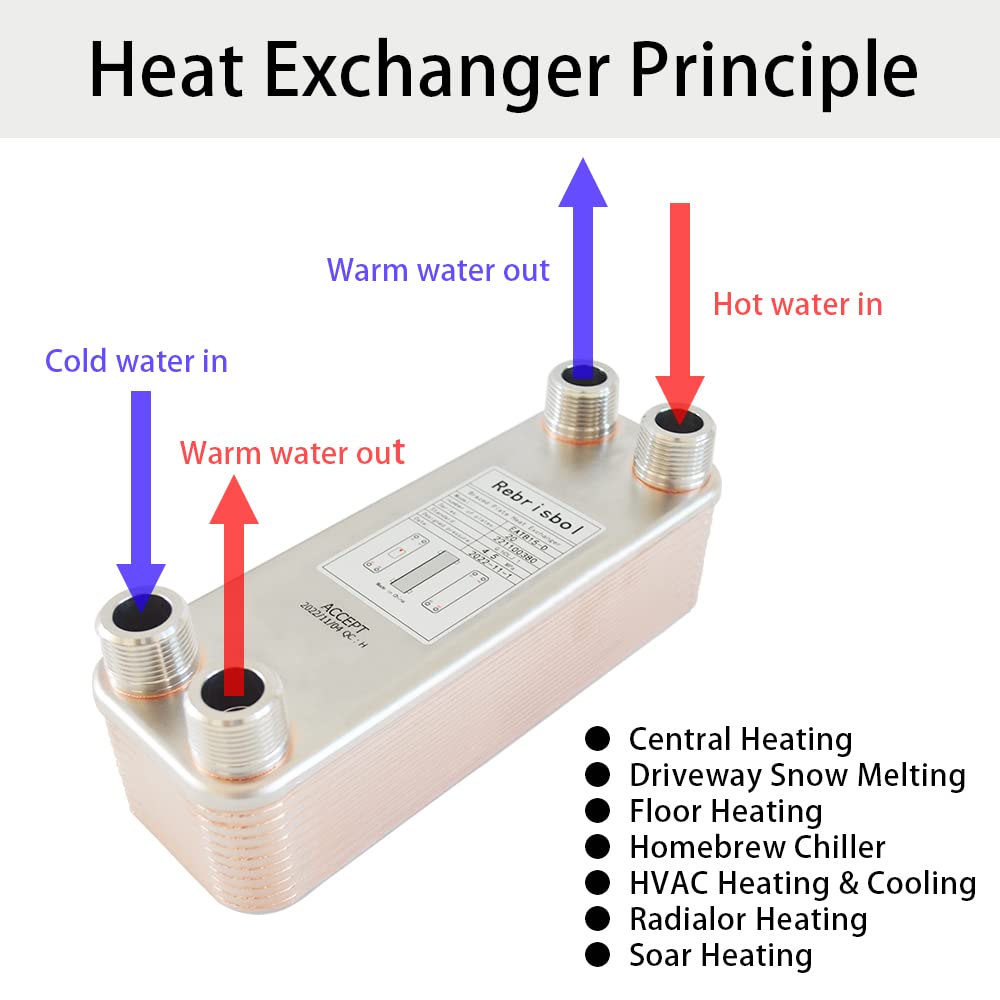

【Premium Quality】- Our brazed plate heat exchangers is made of high quality 316L stainless steel and the plates are vacuum high purity copper brazed together to form two separate flow channals. The fluids can pass in co-current or counter - current directions. High resistance to pressure and temperature fluctuations & corrosion resistance.
【Superior Design】- Special herring bone corrugation pattern of the plates not only creates a strong turbulent flow and move the media in opposite directions to get superior heat transfer rates and efficiency, but also prevents scaling from forming inside the unit and impress heat transfer rates.
【Wide Application】- This brazed plate heat exchangers are ideal for a variety of installations, including Hydronic heating, domestic hot water heating, radiant heating, snow & ice melting, chilled water cooling, beer & wort chilling,hydraulic oil cooling, outdoor wood furnaces/stoves/boilers and other water to water and liquid to liquid heat transfer applications.
